Do You Know The Application of Polyester Mesh Belt?

The polyester mesh belt is widely used in various industries. The polyester mesh belt is mainly made by PET material which have excellent strength than canvas, felt, nylon and other plastic material. It has good air permeability and high heat transfer alibility, so that can save the energy comsumption for customer. So that the polyester mesh belt is widely used on non-woven fabric manufacturing, papermaking, environmental filtration, food, printing, coal washing and other solid and liquid separation industries.

How Many Types of Polyester Mesh Belt?

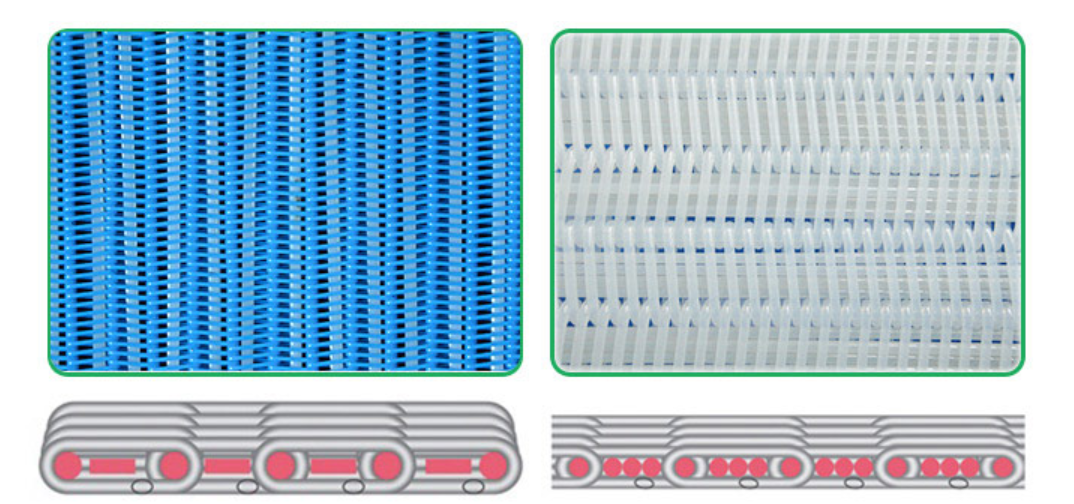

Spiral Mesh Belt

Polyester spiral mesh belt, with its excellent breathability, flat mesh surface, and outstanding strength, has become an ideal choice for many industries. Its detachable design not only enhances the flexibility of use, but also extends its service life. In addition, spiral dry nets made of special materials have multiple characteristics such as high temperature resistance, high wear resistance, and aging resistance, making them versatile in various fields such as melt blown nonwoven fabrics, papermaking, coal mining, food, medicine, printing and dyeing, and rubber products. At the same time, it can also be applied to the bottom mesh of horizontal belt vacuum washer, used as a matching mesh belt for conveyor belts and composite machines.

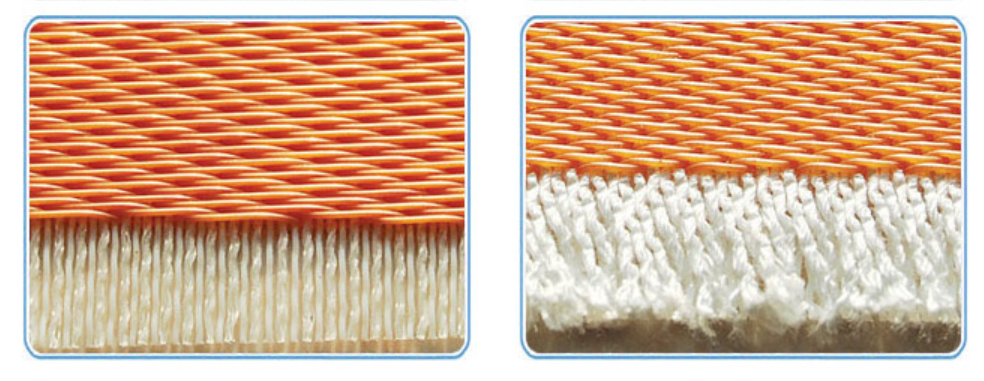

Spiral Press Filter Belt with Filler Wire

Spiral filter press belt, a design that cleverly incorporates filler fibers into the spiral ring, effectively reduces air permeability and thus reduces material loss on the mesh surface. This type of mesh belt is particularly suitable for the pressing and filtering of belt dewatering machines, as well as the solid-liquid separation needs of multiple industries such as papermaking, printing and dyeing, food, chemical, alcohol, vinegar, etc.

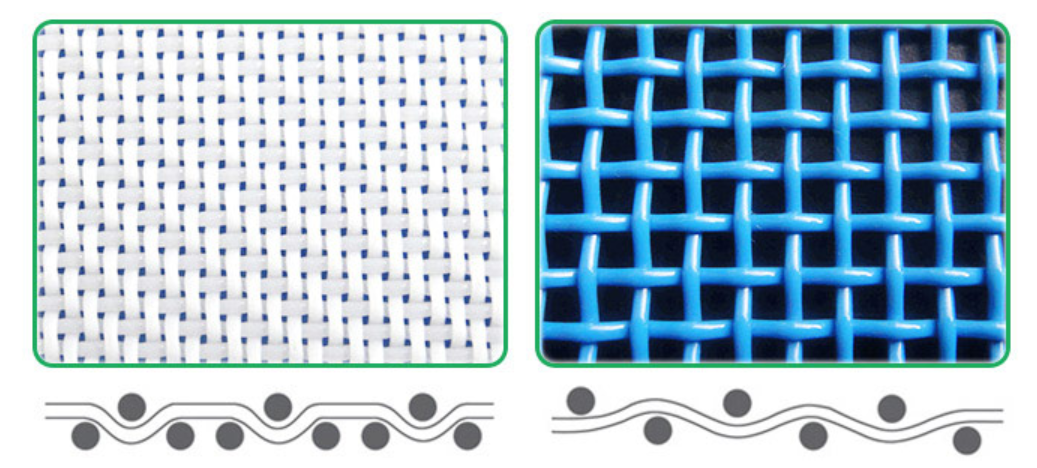

Plain Weave Mesh Belt

It is an important type of paper forming net, which has the characteristics of non-toxic, odorless, smooth surface, anti stick material, corrosion resistance, good winding, wear resistance, high tensile strength, and easy cleaning, making it widely used in various fields, such as non-woven fabric manufacturing, artificial board factory paving machine, fruit and vegetable conveying and drying, sludge dewatering machine, material screening, and environmental protection.

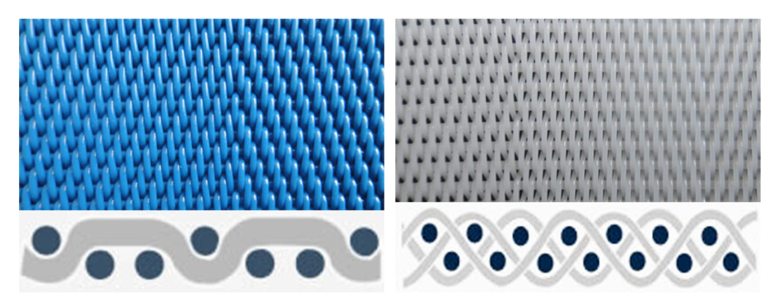

Herringbone Sludge Dewatering Mesh Belt

The sludge dewatering mesh belt adopts a herringbone structure, which makes the separation between the sludge and the mesh belt rapid and efficient, effectively reducing the problem of sludge sticking. At the same time, its easy to clean and fast and convenient connection characteristics also enable it to perform excellently in municipal sewage sludge, enterprise sludge pressure filtration, paper mill pulp pressing, and concentrated juice pressing.

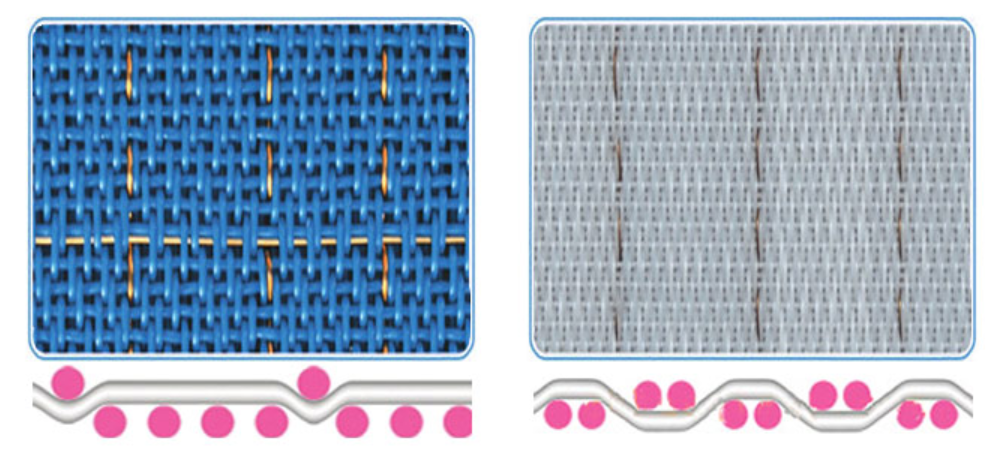

Antistatic Mesh Belt

When equipment using polyester mesh operates at high speeds, static electricity is generated due to friction. To solve this problem, conductive fiber monofilaments can be inserted into the polyester mesh, which can effectively release static electricity and play an anti-static role. This type of mesh belt is widely used in industries such as non-woven fabric manufacturing, environmental protection, high-density board production, rubber, chemical fiber, dry papermaking, as well as fiber board continuous press mesh belt, continuous pre press mesh belt and other industries that require conductivity or anti-static properties.

Desulfurization Mesh Belt

The desulfurization mesh belt, also known as the vacuum filter mesh, has excellent operational stability, is not prone to wrinkles, and has high filtration accuracy and good cake stripping properties. This type of mesh belt is particularly used in conjunction with equipment such as rubber belt vacuum filters, horizontal belt vacuum filters, rotary drum vacuum filters, and vertical filter presses. It is widely used in solid-liquid separation fields such as wet desulfurization in power plants, tailings treatment, metallurgy, mining, chemical industry, coal chemical industry, papermaking, food, pharmaceuticals, and environmental protection.
