Paper Machine Fabric 1.5 Layer Forming Fabric
1.5 Layer Forming Fabric

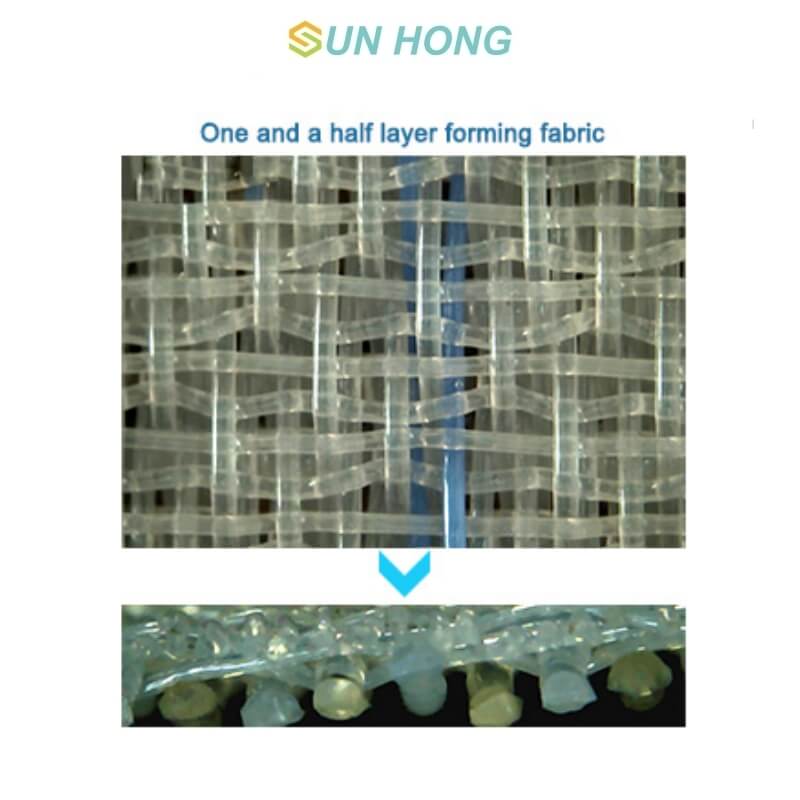

The 10 shelf 1.5 layer forming fabric is a design between the single layer forming fabric and the double layer forming fabric. Sun Hong has improved the weaving method of the yarn, combining the cost effectiveness of the single layer forming fabric and the performance advantages of the double layer forming fabric. It has a strong dehydration capacity and is widely used in the production of writing paper, printing paper and kraft paper.
Main Feature of 1.5 Layer Forming Fabric
(1) The mesh design of Sun Hong's 1.5 layer forming fabric optimizes the water discharge speed and reduces fiber loss. (2) Second fiber recylcling and straw pulp making process. (3) Suitable for paper weight between 50-220g. (4) Suitable for fourdrinier paper machine and two wire fourdrinier paper machine. (5) Reduce the wear and tear of paper machine. |
|
1.5 Layer Forming Fabric Technical Parameter
| Model | Warp Density | Weft Density | Warp Diameter | Weft Diameter | Air Permeability |
| SH24510 | 23.5-24.5 | 27.5-28.5 | 0.25 | 0.30/0.30 0.45/0.45 | 540 |
| SH24510 | 23.5-24.5 | 29.5-30.5 | 0.25 | 0.30/0.30 0.45/0.45 | 475 |
| SH25458 | 24.0-25.0 | 14.5-15.5 | 0.25 | 0.45/0.45 | 560 |
| SH25458 | 24.0-25.0 | 15.5-16.5 | 0.25 | 0.45/0.45 | 505 |
| SH28305 | 27.5 28.5 | 21.0-22.0 | 0.22 | 0.30/0.30 | 505 |
| SH28284 | 27.5-28.5 | 22.0-23.0 | 0.22 | 0.28/0.28 | 400 |
| SH40203 | 40.0-41.0 | 29.0-30.0 | 0.15 | 0.2 | 280 |
