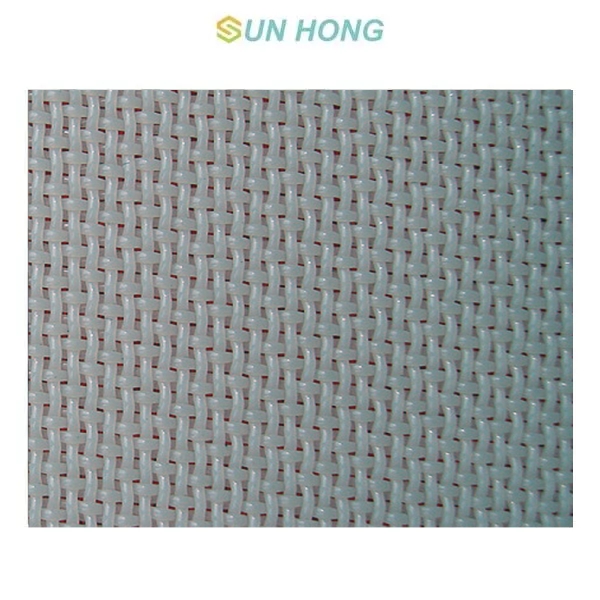

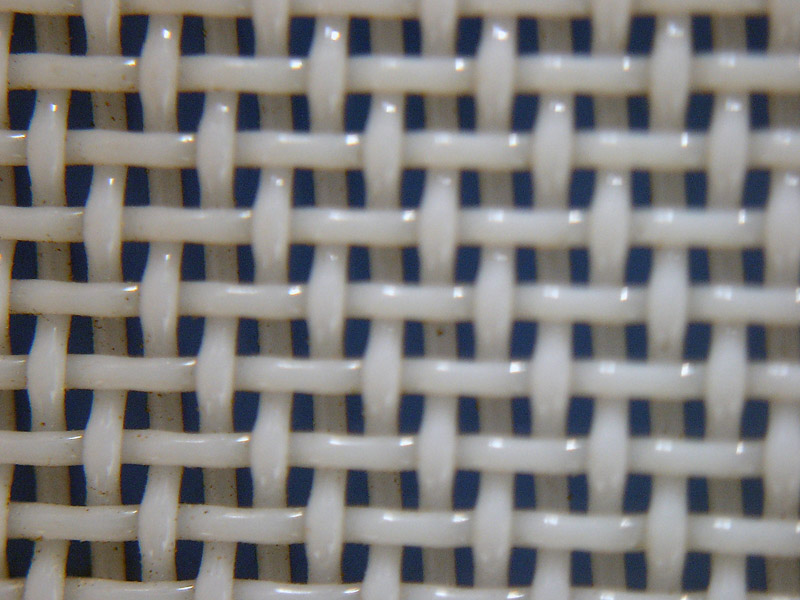

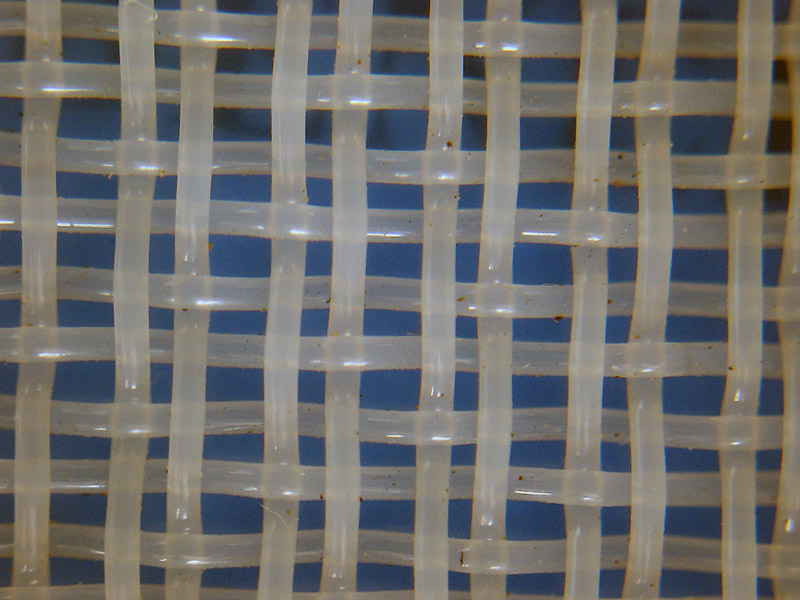

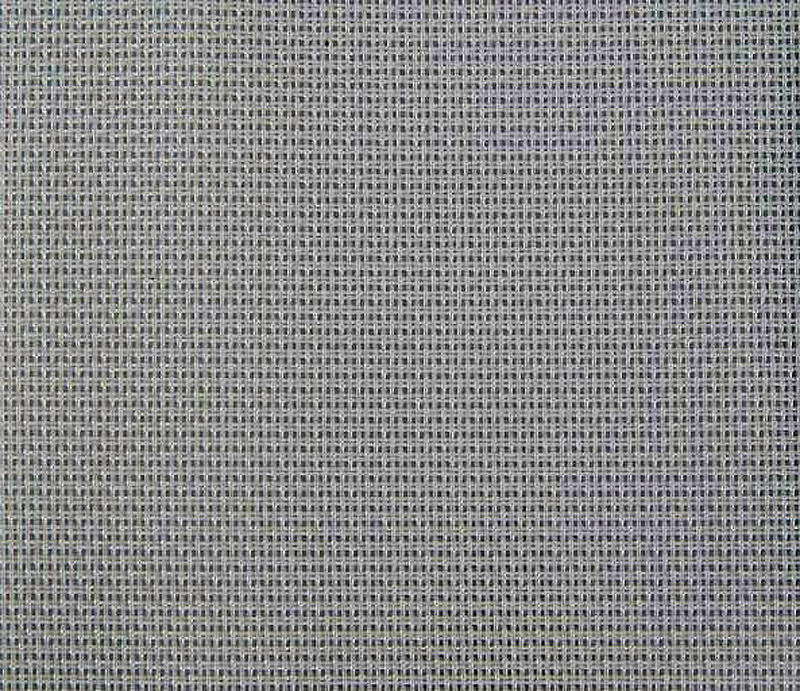

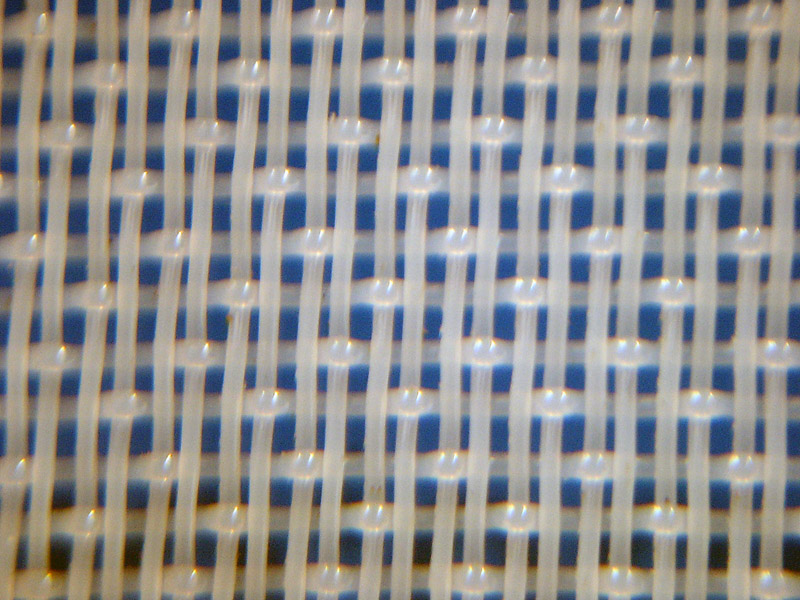

Paper Pulp Washing Mesh Belt

Pulp Washing Mesh Belt

The pulp washing mesh belt is mainly used for sludge dewatering in industries such as paper mills, printing and dyeing factories, chemical factories, electroplating factories, pharmaceutical factories, food factories, ceramic factories, and mines. It has the characteristics of being breathable, permeable, and impermeable to mud. Due to its design structure, the sludge is easily peeled off after pressure filtration, making it easy to clean. The lifespan of the mesh is long, and the filter cloth can withstand up to high tension. The pulp washing mesh belt has good stability and strength, and the subsequent heat treatment process strengthens the stability of our mesh belt at the intersection of warp and weft lines. These features enable our mesh belt to be used on various filter presses, belt dewatering machines, and leaf filters, resulting in a longer lifespan of the mesh belt.

Application of Pulp Washing Mesh Belt

The pulp washing mesh belt is mainly installed on horizontal belt washer, vacuum washer, and drum washer.

Advantages of Sun Hong Pulp Washing Mesh Belt

1. Our pulp washing belt is acid resistant, alkali resistant, wear-resistant, and high-temperature resistant.

2. our mesh belt joints made of stainless steel are cut to be suitable for mesh belts and practical applications.

3. The special polyester material and weaving structure make our mesh belt have a good surface effect, which facilitates the slag discharge and regeneration of the mesh belt.

4. Our pulp washing belt has high tensile strength, strong wrinkle resistance, uniform single filaments on the mesh surface, and flexibility.

5. The adhesive joint of our pulp washing belt is well crafted and uses imported latex, which is not easy to come off.

6. The surface of our pulp washing belt is smooth, the mud cake is easy to peel off, and the filter belt is easy to rinse.

7. The filter cake is thick, easy to regenerate, and easy to peel off. Stable shaping, no deformation, no deviation, no wrinkling, high tensile strength, strong acid and alkali resistance.

8. The tension of Our pulp washing belt is generally controlled between 0.3-0.7MPa, with a commonly used value of 0.5MPa. The walking speed of our pulp washing belt is 1-7m/min.

Technical Parameter of Pulp Washing Mesh Belt
