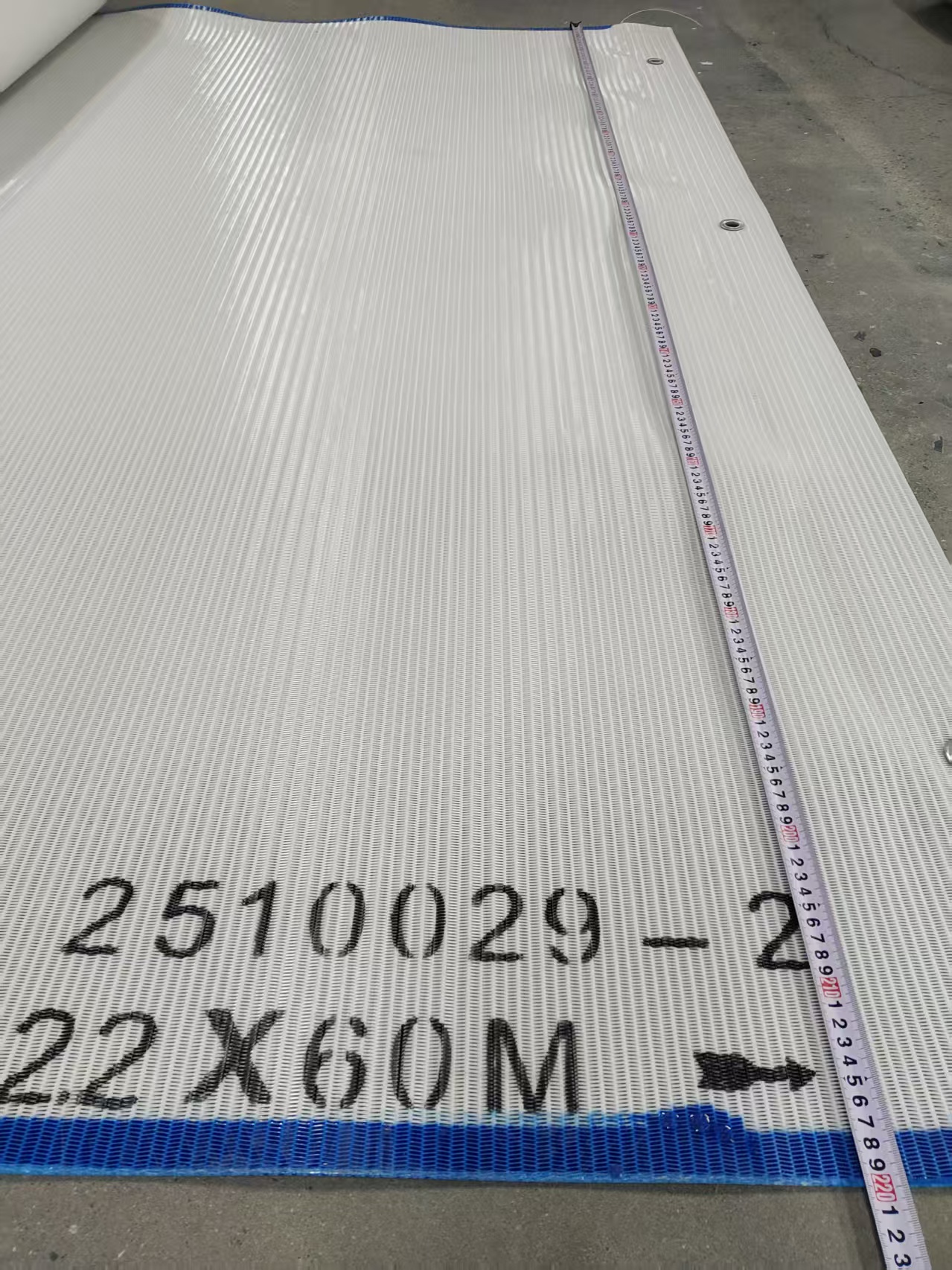

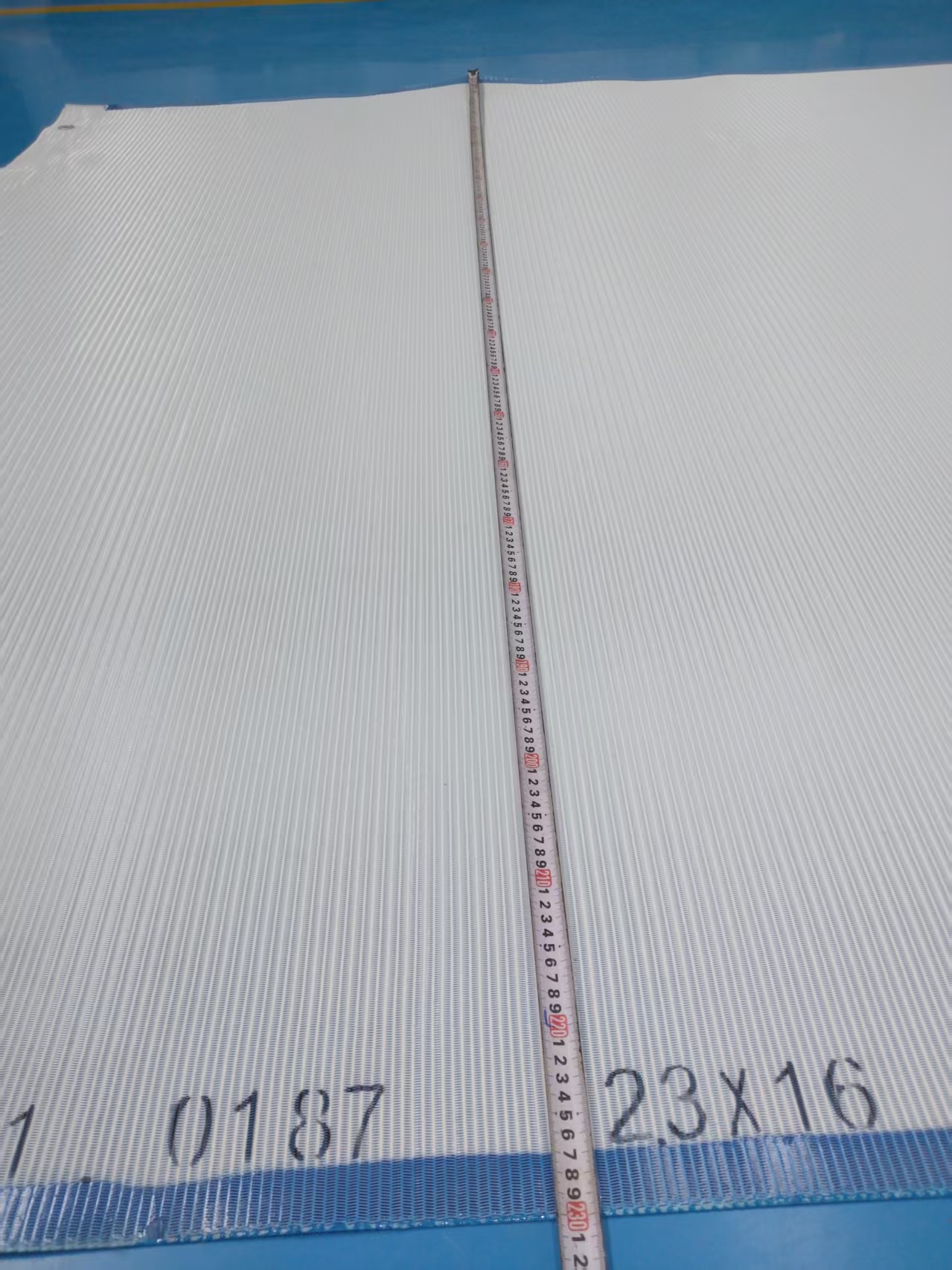

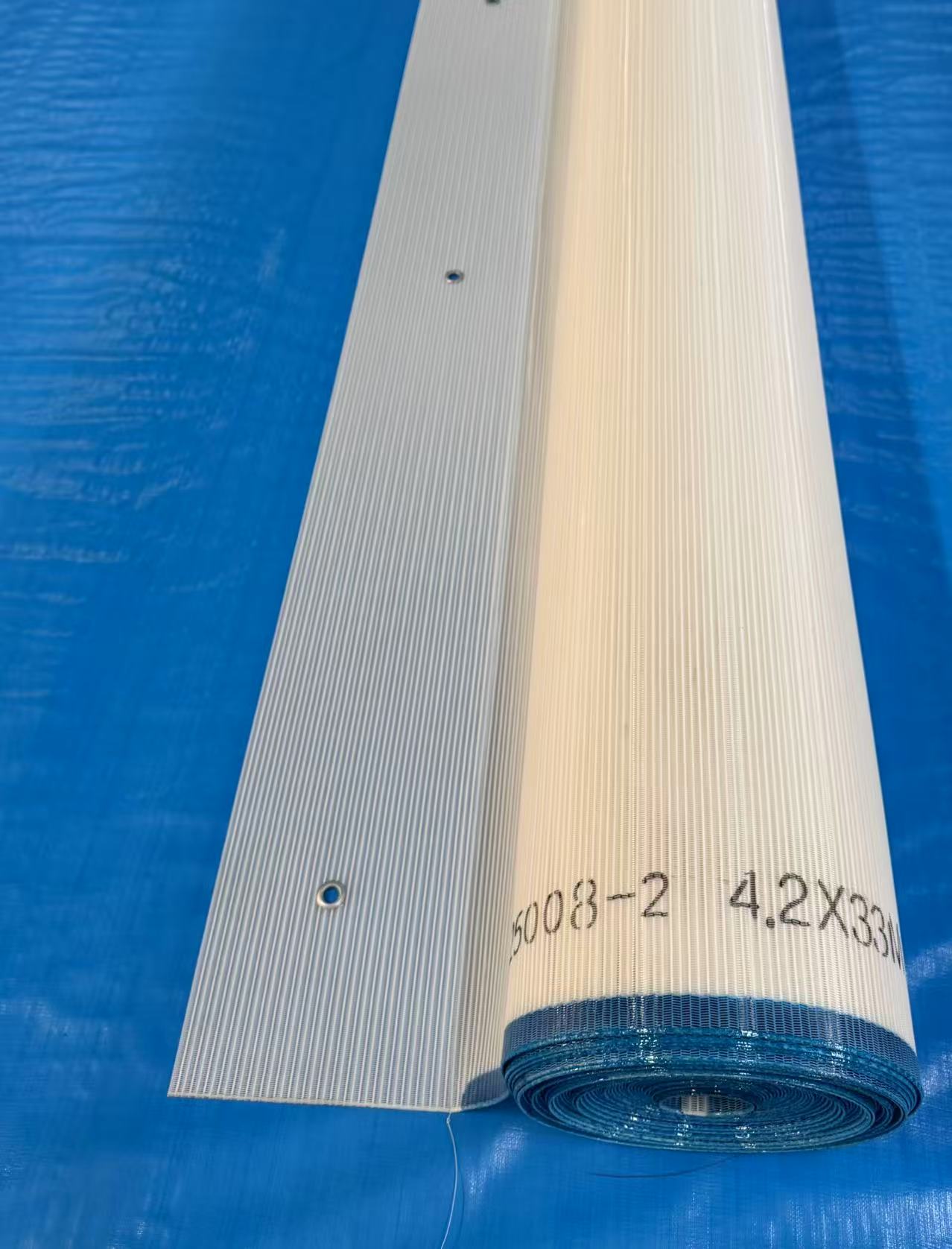

What is Spiral Type Dryer Screen?
Polyester Spiral Type Dryer Fabric
Polyester spiral dryer fabric is made by winding polyester monofilaments into spiral rings, and connecting the spiral rings together with weft threads to form a spiral mesh. This spiral type dryer mesh is not only used for paper machine dryer section, but also used in the coal mining, food, pharmaceutical, printing and dyeing, and rubber products industries can also be used as conveyor belts and composite machine matching mesh belts.
Advantages of Spiral Type Dryer Fabric
Suitable for heavy paper weight such as cardboard paper, pulp board paper, packing paper and culture paper.
Spiral dryer fabric have large air permeability , the surface of mesh is flat and smooth.
Easy to repair, can be disassembled and connected freely.
High strength and long life service.
Category of Spiral Dryer Fabric
-- Small Loop Spiral Dryer Fabric
-- Middle Loop Spiral Dryer Fabric
-- Large Loop Spiral Dryer Fabric
-- Spiral Loop Dryer Fabric with Filler Yarn
|
|
|
Technical Parameter
| Model | Warp Diameter (mm) | Weft Diameter (mm) | Surface Strength (N/cm) | Air Permeability (m3/m2/h) |
| S-Large Loop | 0.9 | 1.1 | ≥2300 | 21000±500 |
| Large Loop | 0.9 | 1.1 | ≥2000 | 18000±500 |
| Middle Loop | 0.7 | 0.9 | ≥2000 | 12000±500 |
| Middle-S Loop | 0.6 | 0.8 | ≥2000 | 9000±500 |
| Small Loop | 0.5 | 0.7 | ≥1800 | 9500±500 |
Middle Loop (Flat Yarn) | 0.48*0.82 | 0.8 | ≥2000 | 8000±500 |
